Introduction to Solid Oxide Electrolysis: A Game-Changer in Hydrogen Production and Energy Generation

Solid oxide electrolysis (SOE) is a promising technology for converting electrical energy into chemical energy.  Currently, it is gaining attention as a means of producing hydrogen, generating electricity, and capturing carbon dioxide.  It involves the use of solid oxide electrolyte cells (SOECs) to carry out electrochemical reactions between two electrodes separated by a solid oxide electrolyte.  In this article, we will discuss the working principle, applications, and advantages of solid oxide electrolysis.

Working Principle

The working principle of solid oxide electrolysis is based on the transfer of ions through a solid oxide electrolyte. The electrolyte is typically made of ceramics, such as zirconia or yttria-stabilized zirconia, that are capable of conducting oxygen ions. These ceramics have a high melting point, making them suitable for high-temperature applications.

Topsoe SOECs Electrolyzer

SOECs consist of three layers: an anode, a cathode, and a solid oxide electrolyte layer that separates the two electrodes. The anode and cathode are made of porous ceramic materials that allow the reactants to diffuse through them. The electrolyte layer is typically a thin film, which separates the anode and cathode and prevents them from touching.

When an electrical current is applied to the SOEC, oxygen ions move from the cathode to the anode through the electrolyte layer. At the anode, oxygen ions react with electrons to form oxygen gas. Meanwhile, at the cathode, hydrogen ions react with electrons to form hydrogen gas. The overall reaction is:

2H₂O + electrical energy → 2H₂ + O₂

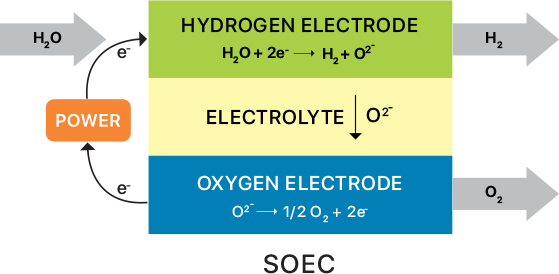

Typical solid oxide electrolysis mechanism

This process is known as water electrolysis because it requires water as the source of hydrogen and oxygen. However, SOECs can also use other sources of water, such as steam, or other fuels, such as methane or carbon monoxide.

Applications

Hydrogen Production

One of the primary applications of solid oxide electrolysis is the production of hydrogen. Hydrogen can be produced by splitting water into its constituent elements, hydrogen and oxygen, using electricity. The process of water electrolysis has been used for many years, but solid oxide electrolysis offers several advantages over traditional water electrolysis. Firstly, it operates at high temperatures, which reduces the energy required for the reaction and increases the reaction rate. Secondly, it can use a wide range of fuels, including natural gas and biogas. Thirdly, it has a high efficiency of up to 80%, which reduces greenhouse gas emissions and energy costs. Hydrogen produced by solid oxide electrolysis can be used as a fuel for vehicles, heating, and electricity generation.

Power Generation

Solid oxide electrolysis can also be used to generate electricity directly by reversing the reaction. This is known as solid oxide fuel cell (SOFC) technology. SOFCs are highly efficient and can be used to generate electricity from a variety of fuels, including natural gas, biogas, and hydrogen. The high temperature at which SOFCs operate also makes them suitable for use in combined heat and power (CHP) systems, where the waste heat from electricity generation can be used for heating.

Carbon Dioxide Capture

Another potential application of solid oxide electrolysis is carbon dioxide capture. Carbon dioxide can be captured from flue gas streams and converted into useful products, such as synthetic fuels, using solid oxide electrolysis. This process is known as power-to-liquid (PtL) technology. PtL technology offers a way to reduce greenhouse gas emissions from industrial processes and transportation.

Advantages

Solid oxide electrolysis has several advantages over other electrolysis technologies:

Higher Efficiency

One of the primary advantages of solid oxide electrolysis over traditional electrolysis is its higher efficiency. SOE operates at high temperatures, typically between 700 and 900 degrees Celsius, which reduces the energy required for the reaction and increases the reaction rate. Traditional electrolysis, on the other hand, operates at room temperature or slightly above, which requires a higher energy input to achieve the same reaction rate. As a result, SOE has a higher efficiency of up to 80%, compared to traditional electrolysis, which typically has an efficiency of around 70%.

Flexibility in Feedstocks

Solid oxide electrolysis also offers flexibility in the choice of feedstocks. Traditional electrolysis typically uses only pure water as a feedstock, while SOE can use a wide range of fuels, including natural gas, biogas, and hydrogen. This makes SOE more versatile and adaptable to different energy systems and can lead to greater integration of renewable energy sources.

Lower Greenhouse Gas Emissions

Another advantage of solid oxide electrolysis is its potential to reduce greenhouse gas emissions. SOE can use renewable sources of electricity, such as wind or solar power, to produce hydrogen, which can then be used as a clean fuel. In contrast, traditional electrolysis often uses electricity generated from fossil fuels, which contributes to greenhouse gas emissions. Additionally, SOE can capture and utilize carbon dioxide emissions from industrial processes, reducing the overall carbon footprint.

Longer Lifespan

Solid oxide electrolysis also has a longer lifespan compared to traditional electrolysis. SOECs are made of solid materials, which are more durable and can withstand high temperatures and harsh environments. In contrast, traditional electrolysis often uses liquid electrolytes that can corrode or degrade over time, reducing the lifespan of the system.

Conclusion

Solid oxide electrolysis is a promising technology for hydrogen production, power generation, and carbon dioxide capture. It operates at high temperatures, is highly efficient, and has a long lifespan. The widespread adoption of solid oxide electrolysis technology could lead to significant reductions in greenhouse gas emissions and energy costs, making it an important tool for addressing climate change.
